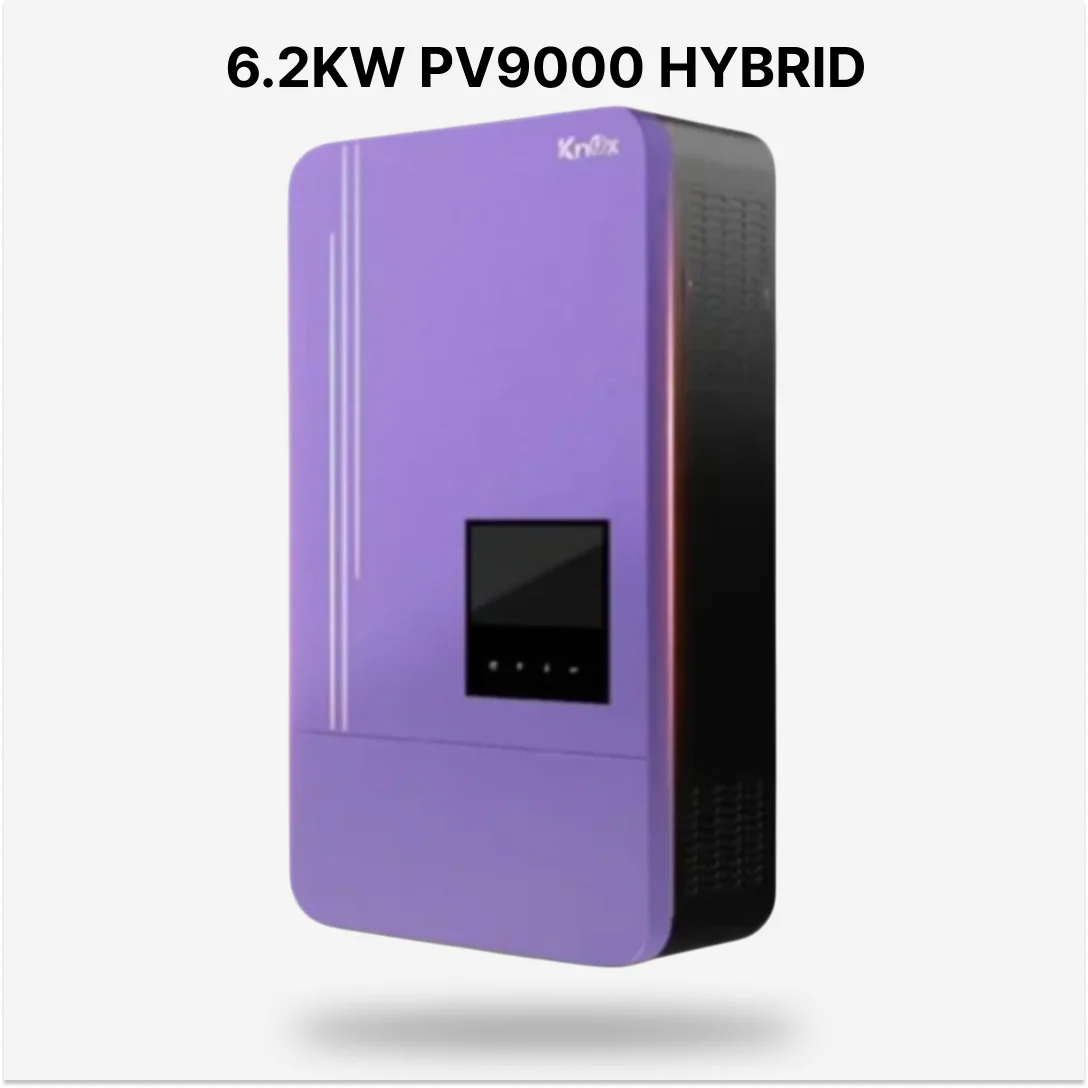

Knox Krypton 6.2KW PV9000 HYBRID Solar Inverter

Knox Krypton 6.2KW PV9000 HYBRID Solar Inverter

Rs.145,000.00 PKR
Rs.155,000.00 PKR Rs.145,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

General Specifications

Parameter Specification
Phase Single Phase
Rated Output Power 6200 W
Battery + PV Output Power 8000 W
Nominal DC Voltage 48 VDC
Maximum DC Voltage 500 VDC
Start-up Voltage 120 VDC
Initial Feeding Voltage 150 VDC
MPPT Voltage Range 120 VDC – 430 VDC
Number of MPPT Trackers 1
Max Input Current 27 A (Max 40 A)


Interface & Communication

  • USB

  • RS232

  • RS485

  • WiFi

  • Dry-contact

Certifications & Approvals

  • IEC 61682

  • Low Voltage Directive 2014/35/EU

  • IEC 62109-1

  • IEC 62109-2

  • IEC 61683

  • More certifications available upon request

Key Highlights

  • High surge power of 12.4 kVA

  • Pure sine wave output for sensitive electronics

  • Fast transfer time (10–20 ms) for seamless backup

  • Robust MPPT solar charging with wide voltage range

  • Multiple communication options for easy monitoring

  • Compact and lightweight design

  • Certified for safety and reliability
